- Rp1 to Rp 2
- DVGW-tested
Usage
The fine filters in the TFI series are used to retain undissolved substances in order to protect installations from corrosion and prevent malfunctions in fittings, systems, devices, and machines. Inline filter housing with opposing horizontal inlet and outlet connections. The filters are DVGW-tested and have a filter fineness of 95-140 μm.
Functionality
The cold drinking water to be filtered is fed through the inlet connection to the outside of the vertically installed filter element. The water passes through the filter fabric, while particles larger than 95-140µm are retained. The filtered drinking water flows upward in the center of the filter element and leaves the filter housing at the outlet connection.
Advantages

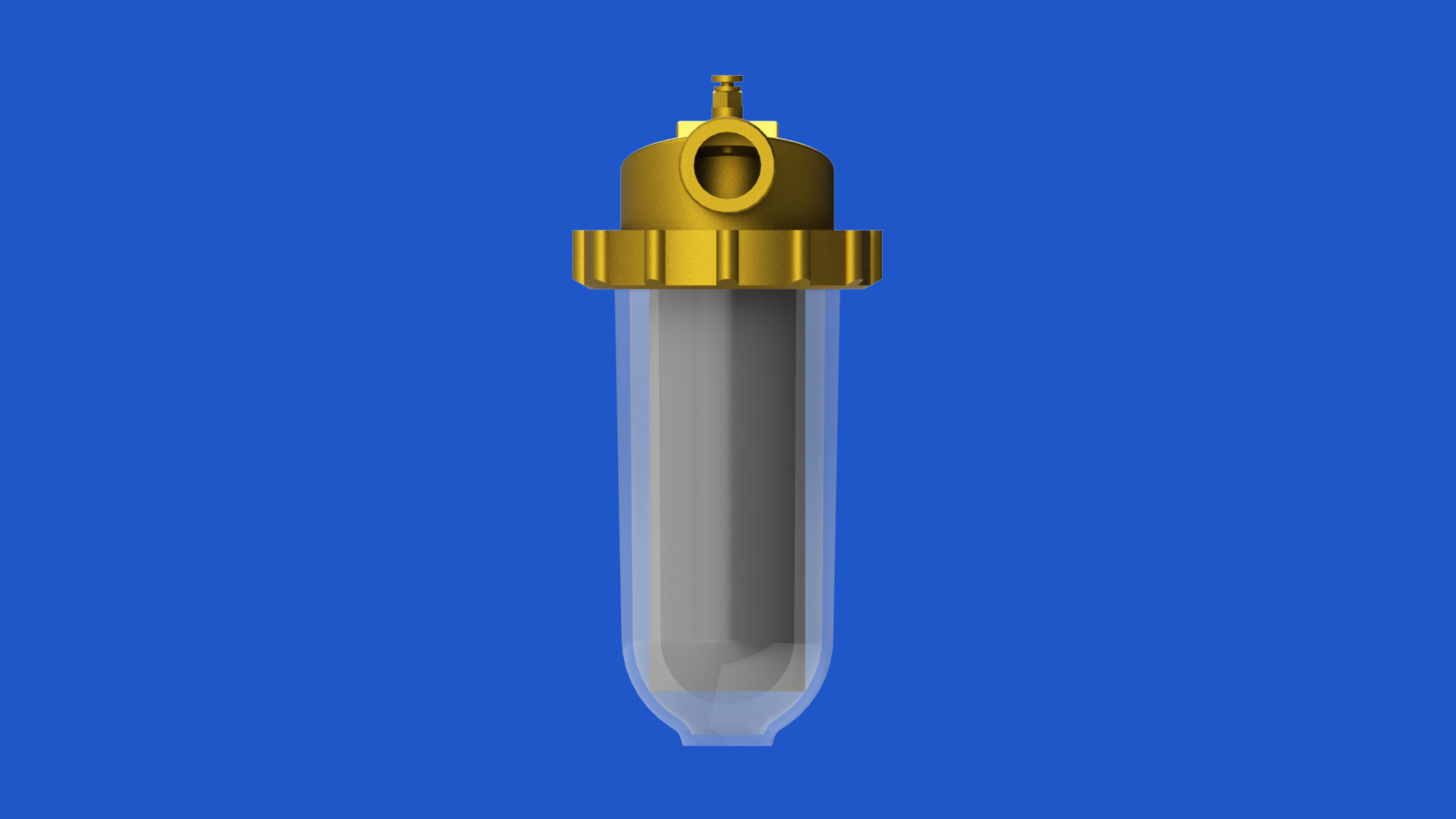

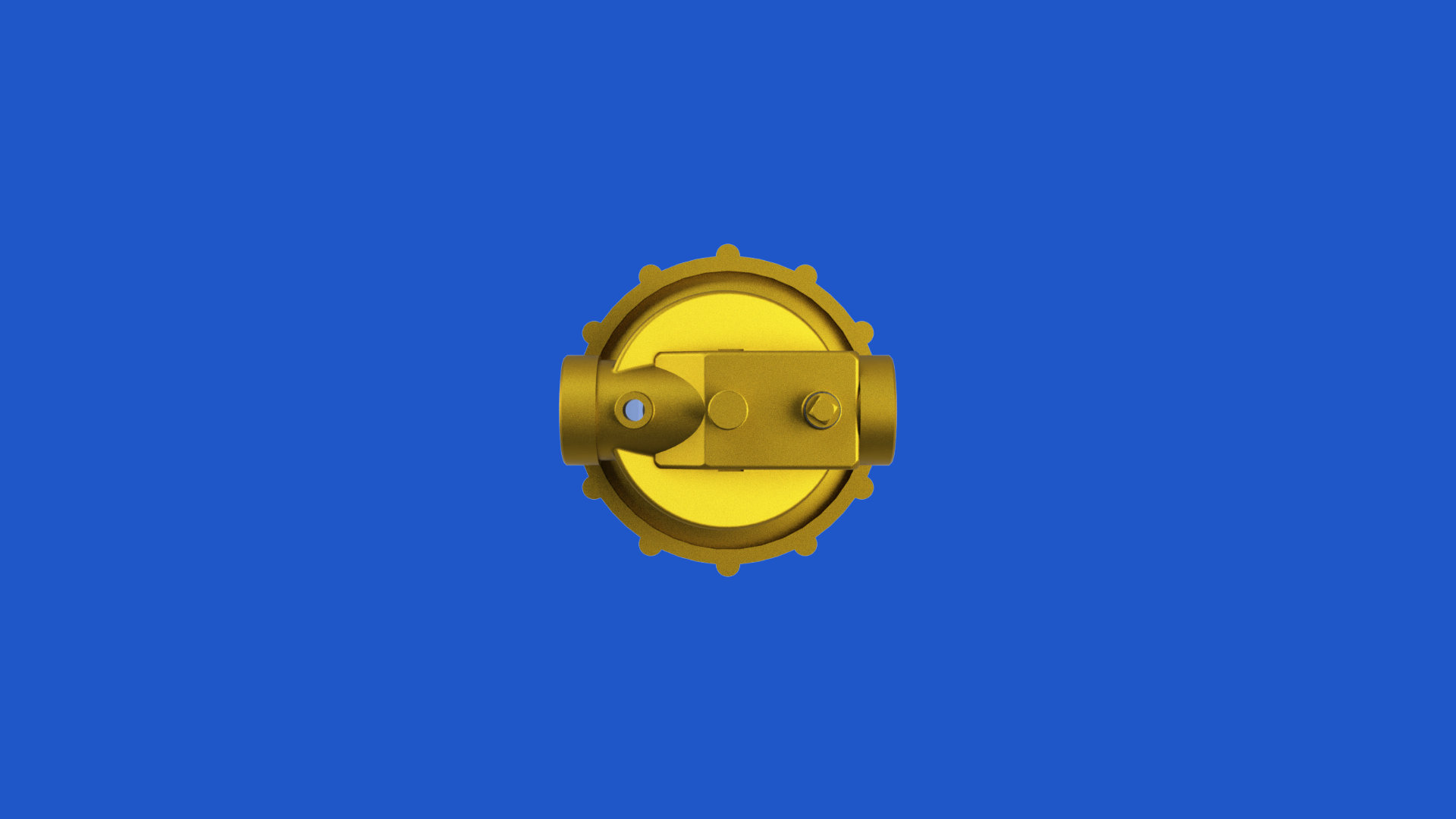

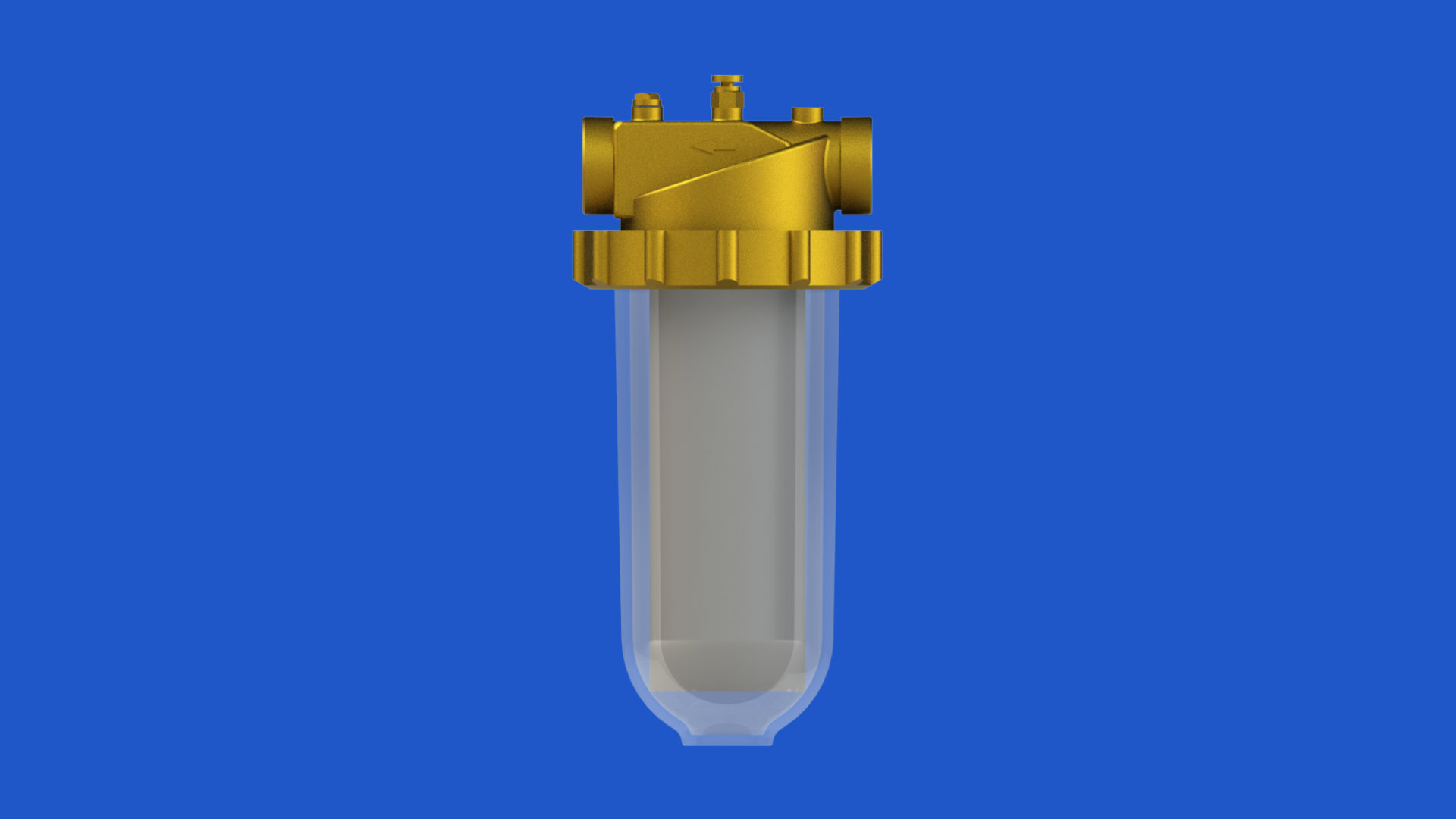

Brass upper housing with vent valve
Transparent filter cup made of highly impact-resistant plastic (Trogamit T) with union nut and O-ring seal
Transparent filter cup made of highly impact-resistant plastic (Trogamit T) with union nut and O-ring seal
DVGW test mark
Scope of delivery
Filter housing with transparent cup
Filter insert with support body and filter stocking, 95-140µm
