- For filling heating systems in accordance with VDI2035
- Semi-automatic
- Capacity 75 cubic meters per day
Usage

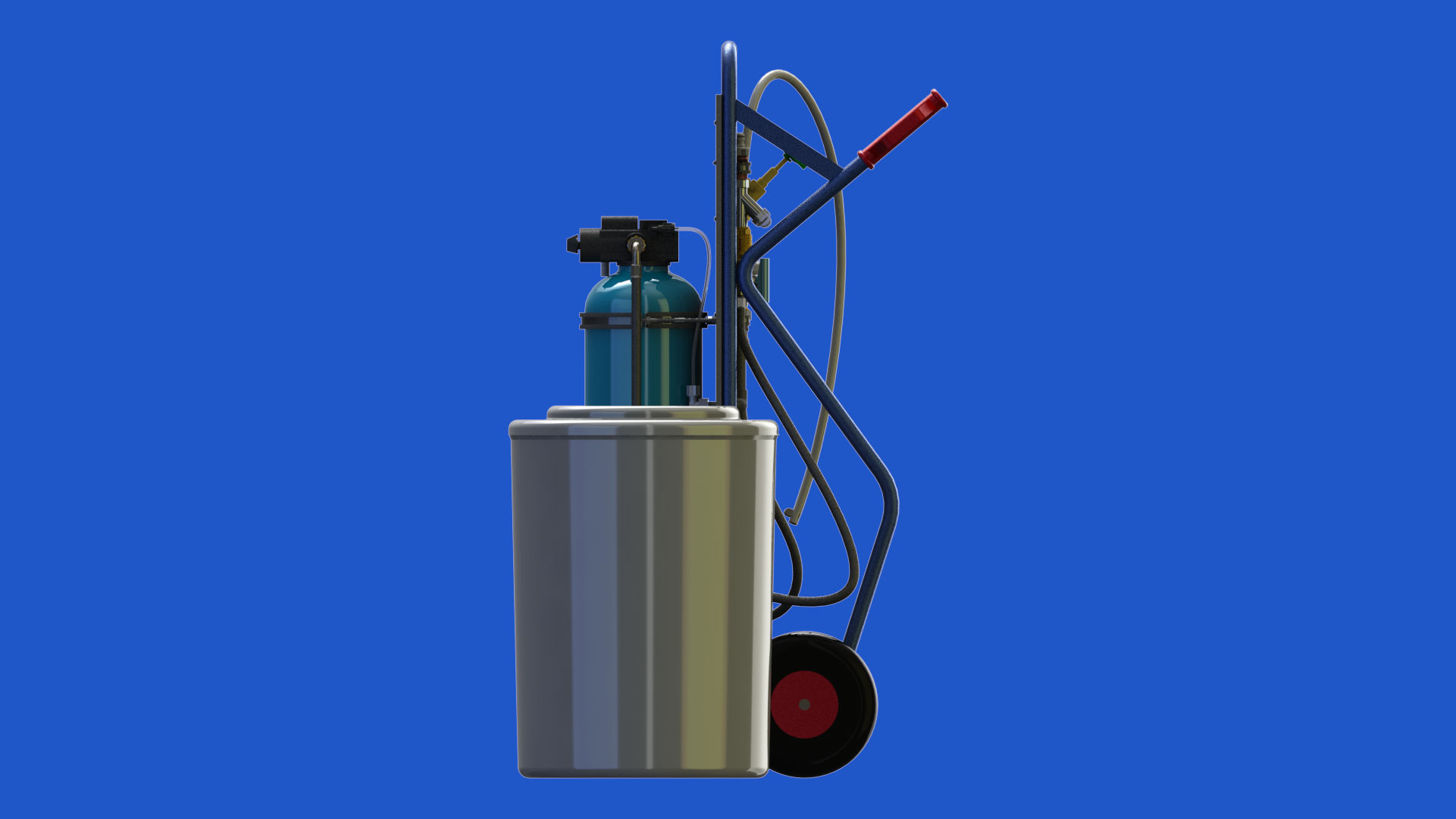

The EHE-75-mobil mobile single water softener makes it easy to fill heating systems with softened water in accordance with VDI2035.
The filter tank itself is mounted on a sturdy steel tube trolley and can be quickly and conveniently transported to the place of use.
The salt dissolving tank included in the scope of delivery remains stationary at the main location. After the predetermined amount of soft water has been withdrawn (readable on the water meter), the filter tank is returned to the main location, then connected to the salt dissolving tank and the waste water in just a few simple steps and regenerated.
Once regeneration is complete, the filter tank is available again at full capacity.
Functionality
The EHE75mobil series water softeners operate as individual softening systems based on the ion exchange principle. Operation is semi-automatic.
The raw water flows through the inlet on the control valve into the filter tank, flows through the exchange mass, where the softening process takes place, rises upwards via the nozzle rod and leaves the control valve via the soft water outlet.
Once the capacity of the exchange mass is exhausted, regeneration must be initiated by winding the spring timer on the control valve. This draws the brine from the salt container (included in delivery) through the brine valve and directs it through the exchange mass. The regeneration wastewater leaves the control valve via the drain hose to the sewer. Once the brine has been extracted, the residual brine in the filter tank is washed out with clean water.
Advantages
Ultra-mobile thanks to mounting on a hand truck
Easy to use
Easy regeneration in the workshop
Integrated dirt trap
Water meter for the amount of softened water supplied
Shut-off valves for raw and soft water
Built-in backflow preventer
Scope of delivery
Mobile single-unit water softening system, largely pre-assembled and ready for connection, consisting of:
Steel pipe handcart, with pneumatic tires
Filter container made of glass fiber reinforced plastic
Filter filling with high-quality ion exchangers in food grade quality
Nozzle bar with lower distribution nozzle
Semi-automatic central control valve
Dirt trap
Non-return valve
Raw water shut-off valve
Water meter for soft water volume
Soft water shut-off valve
Salt dissolving tank with sieve bottom and brine valve
Drain and brine hoses
Hardness measuring device housed in a holder on the water softener
